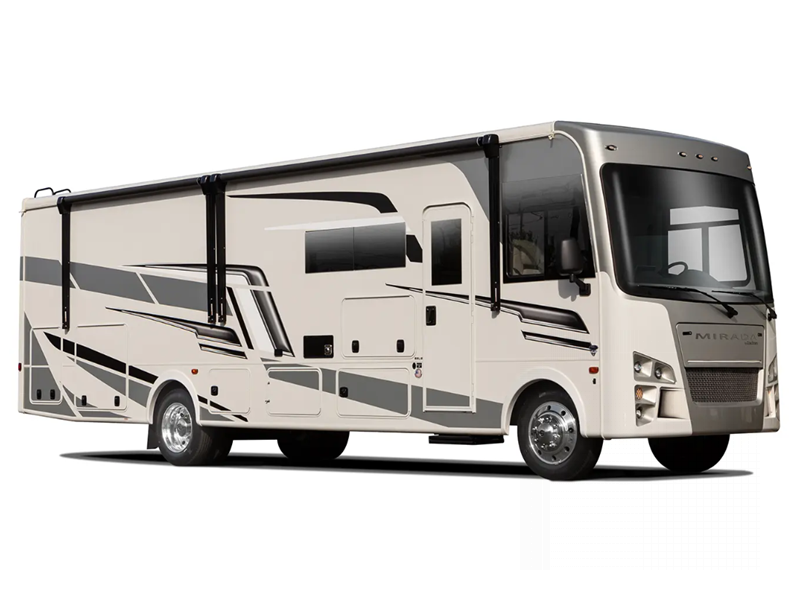

Coachmen RV Mirada Motor Home Class A
To feel right at home where ever you go, choose a Mirada class A gas motorhome from Coachmen RV! You'll be glad you did!
-
Mirada 29FW
Coachmen Mirada 29FW class A gas motorhome highlights: King Bed 38" x 24" Shower ... more about Mirada 29FW
Specifications
Sleeps 5 Slides 1 Length 30 ft 7 in Ext Width 8 ft 6 in Ext Height 12 ft 5 in Interior Color Stone Wash, Bisque, Midnight Cream Exterior Color Champagne Fiberglass with Partial Paint, Electric Blue or Black/Tan Full-Body Paint (Optional) Hitch Weight 8000 lbs Gross Weight 18000 lbs Fresh Water Capacity 50 gals Grey Water Capacity 46 gals Black Water Capacity 46 gals Tire Size 19.5" Furnace BTU 30000 btu Generator 5.5kw Onan Fuel Type Gasoline Engine 6.8L V10 Chassis Ford Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 190 in Number Of Bunks 1 Available Beds King Torque 460 ft-lb Refrigerator Type Double Door Refrigerator Size 8 cu ft Cooktop Burners 3 Shower Size 38" x 24" Number of Awnings 1 LP Tank Capacity 20 lbs. Water Heater Capacity 6 gal. Water Heater Type DSI Gas/Electric AC BTU 27000 btu Basement Storage 131 cu. ft. TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV Awning Info 20' Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Mirada 35BH
Coachmen Mirada 35BH class A gas motorhome highlights: Convertible Bunks ... more about Mirada 35BH
Specifications
Sleeps 8 Slides 2 Length 36 ft 10 in Ext Width 8 ft 6 in Ext Height 12 ft 5 in Interior Color Stone Wash, Bisque, Midnight Cream Exterior Color Champagne Fiberglass with Partial Paint, Electric Blue or Black/Tan Full-Body Paint (Optional) Hitch Weight 8000 lbs Gross Weight 22000 lbs Fresh Water Capacity 70 gals Grey Water Capacity 90 gals Black Water Capacity 90 gals Tire Size 19.5" Furnace BTU 30000 btu Generator 5.5kw Onan Fuel Type Gasoline Engine 6.8L V10 Chassis Ford Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 242 in Number Of Bunks 3 Available Beds Queen Torque 460 ft-lb Refrigerator Type Double Door Refrigerator Size 8 cu ft Cooktop Burners 3 Shower Size 48" x 35" Number of Awnings 1 LP Tank Capacity 20 lbs. Water Heater Capacity 6 gal. Water Heater Type DSI Gas/Electric AC BTU 27000 btu Basement Storage 105 cu. ft. TV Info LR 39" LED TV, BR 32" LED TV, Bunks (2) 13" TV, Galley & Ext. 32" LED TV Option Awning Info 12' Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Mirada 32SS
Coachmen Mirada 32SS class A gas motorhome highlights: Overhead Bunk Booth ... more about Mirada 32SS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 1 Length 34 ft 10 in Ext Width 8 ft 6 in Ext Height 12 ft 5 in Interior Color Stone Wash, Bisque, Midnight Cream Exterior Color Champagne Fiberglass with Partial Paint, Electric Blue or Black/Tan Full-Body Paint (Optional) Hitch Weight 8000 lbs Gross Weight 20500 lbs Fresh Water Capacity 70 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 19.5" Furnace BTU 30000 btu Generator 5.5kw Onan Fuel Type Gasoline Engine 6.8L V10 Chassis Ford Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 228 in Number Of Bunks 1 Available Beds King Torque 460 ft-lb Refrigerator Type Double Door Refrigerator Size 8 cu ft Cooktop Burners 3 Shower Size 32" x 32" Number of Awnings 2 LP Tank Capacity 20 lbs. Water Heater Capacity 6 gal. Water Heater Type DSI Gas/Electric AC BTU 27000 btu Basement Storage 125 cu. ft. TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV Awning Info 13' & 10' Power Gross Combined Weight 26000 lbs Shower Type Radius Electrical Service 50 amp Similar Floorplans
-
Mirada 35KB
Coachmen Mirada 35KB class A gas motorhome highlights: King Bed Sofa U-Shaped ... more about Mirada 35KB
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 2 Length 36 ft 10 in Ext Width 8 ft 6 in Ext Height 12 ft 5 in Interior Color Stone Wash, Bisque, Midnight Cream Exterior Color Champagne Fiberglass with Partial Paint, Electric Blue or Black/Tan Full-Body Paint (Optional) Hitch Weight 8000 lbs Gross Weight 22000 lbs Fresh Water Capacity 70 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 19.5" Furnace BTU 30000 btu Generator 5.5 Onan Fuel Type Gasoline Engine 6.8L V10 Chassis Ford Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 242 in Number Of Bunks 1 Available Beds King Torque 460 ft-lb Refrigerator Type Double Door Refrigerator Size 8 cu ft Cooktop Burners 3 Shower Size 38" x 26" Number of Awnings 2 LP Tank Capacity 20 lbs. Water Heater Capacity 6 gal. Water Heater Type DSI Gas/Electric AC BTU 27000 btu Basement Storage 124 cu. ft. TV Info LR 39" LED TV, BR 32" LED TV, Galley & Ext. 32" LED TV Option Awning Info 10' & 15' Power Washer/Dryer Available Yes Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Mirada 35LS
Coachmen Mirada 35LS class A gas motorhome highlights: L-Shaped Sofa Dinette ... more about Mirada 35LS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 36 ft 10 in Ext Width 8 ft 6 in Ext Height 12 ft 5 in Interior Color Stone Wash, Bisque, Midnight Cream Exterior Color Champagne Fiberglass with Partial Paint, Electric Blue or Black/Tan Full-Body Paint (Optional) Hitch Weight 8000 lbs Gross Weight 22000 lbs Fresh Water Capacity 70 gals Grey Water Capacity 45 gals Black Water Capacity 90 gals Tire Size 19.5" Furnace BTU 30000 btu Generator 5.5kw Onan Fuel Type Gasoline Engine 6.8L V10 Chassis Ford Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 242 in Number Of Bunks 1 Available Beds Queen Torque 460 ft-lb Refrigerator Type Double Door Refrigerator Size 8 cu ft Cooktop Burners 3 Shower Size 48" x 35" Number of Awnings 1 LP Tank Capacity 20 lbs. Water Heater Capacity 6 gal. Water Heater Type DSI Gas/Electric AC BTU 27000 btu Basement Storage 126 cu. ft. TV Info LR 39" LED TV, BR 32" LED TV, Ext. 32" TV Option Awning Info 18' Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Mirada 35OS

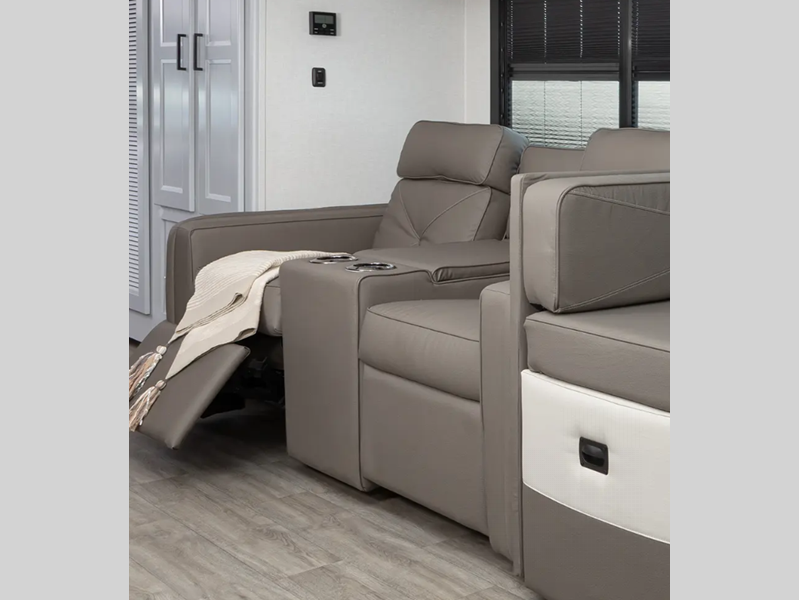

Coachmen Mirada 35OS class A gas motorhome highlights: Theater Seating Sofa Bed ... more about Mirada 35OS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 2 Length 36 ft 10 in Ext Width 8 ft 6 in Ext Height 12 ft 5 in Int Height 0 ft Interior Color Stone Wash, Bisque, Midnight Cream Exterior Color Champagne Fiberglass with Partial Paint, Electric Blue or Black/Tan Full-Body Paint (Optional) Hitch Weight 8000 lbs Gross Weight 22000 lbs Fresh Water Capacity 70 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 19.5" Furnace BTU 30000 btu Generator 5.5kw Onan Fuel Type Gasoline Engine 6.8L V10 Chassis Ford Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 242 in Number Of Bunks 1 Available Beds King Torque 460 ft-lb Refrigerator Type Double Door Refrigerator Size 8 cu ft Cooktop Burners 3 Shower Size 38" x 24" Number of Awnings 1 LP Tank Capacity 20 lbs. Water Heater Capacity 6 gal. Water Heater Type DSI Gas/Electric AC BTU 27000 btu TV Info LR 39" LED TV, BR 32" LED TV, Ext. 40" TV Awning Info 20' Power Washer/Dryer Available Yes Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans

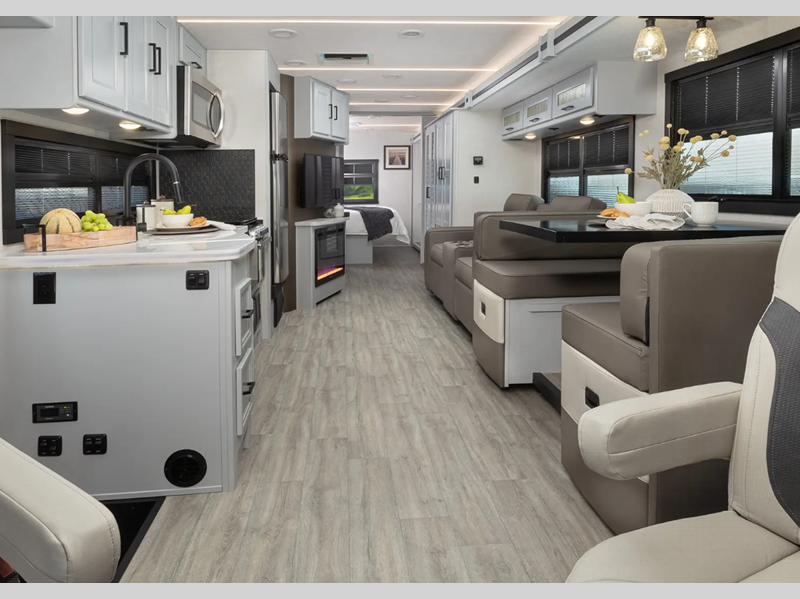

Take a Virtual Tour
Mirada Features:
Standard Features (2018)
Interior Appointments
- Solid Surface Kitchen Countertop and Dinette Table
- Beauflor™ Vinyl Flooring Throughout
- Brushed Nickel Hardware
- Hardwood Cab Doors and Raised Panel Overhead Doors
- Self-Closing Ball Bearing Drawer Guides Throughout
- Frameless Tinted Windows with Safety Glass
- Reclining and Swivel Pilot Seats

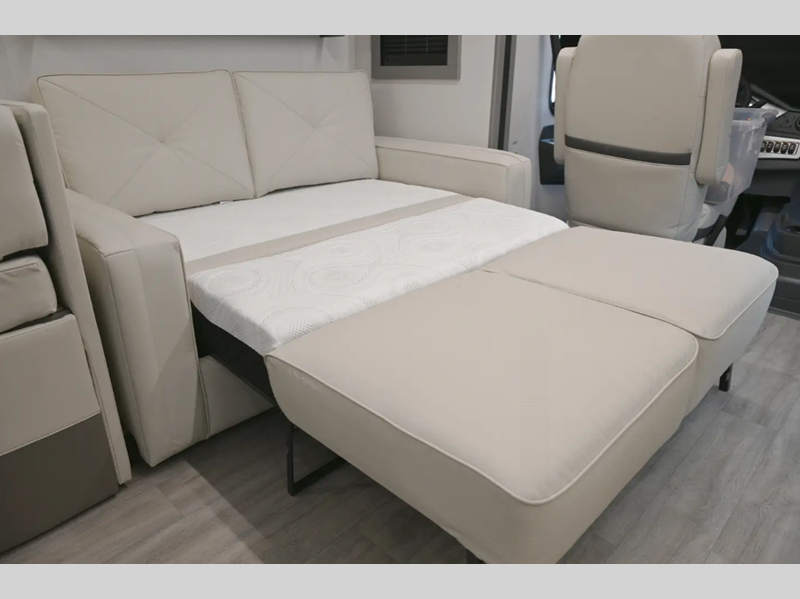

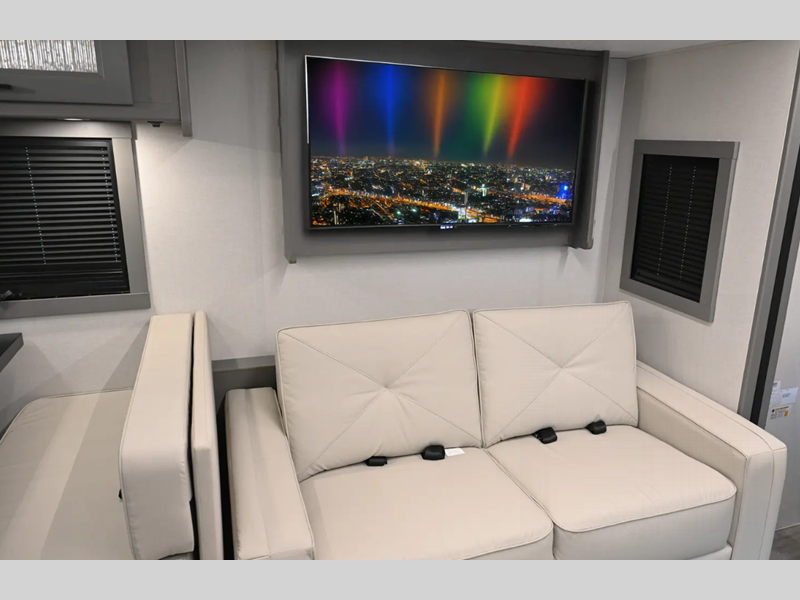

- Visionary Sofa Hide-A-Bed
- L-Shape Sofa Lounge with Visionary (35LS only)
- Chaise Lounge with Visionary (32SS only)
- Solar Privacy Shades Throughout
- Easy-Clean Cockpit Floor
- Power Windshield Shade
Interior Equipment
- Radio AM/FM and Bluetooth
- Satellite Prep Wire to Roof
- Cable TV Jack
- LP Leak Alarm and Smoke Detector
- Carbon Monoxide Detector
- Fire Extinguisher
- King Jack TV Antenna
- 40” LCD TV Coach
- DVD Player in Living Room and Bedroom
- Horseshoe Booth Dinette (35BH and 35KB)
- Dream Dinette (29FW, 32SS, and 35LS)

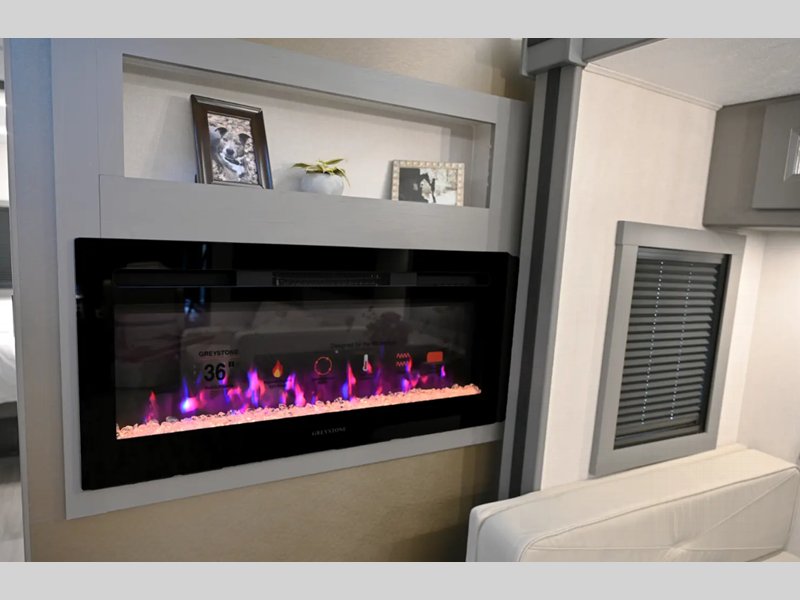

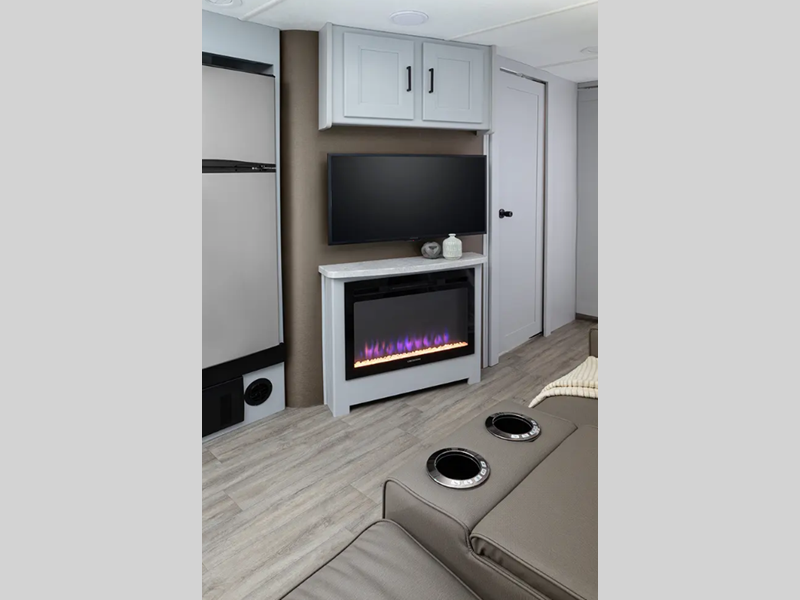

- Electric Fireplace (32SS and 35LS)
- 13” TV with DVD Player in Each Bunk (35BH Only)

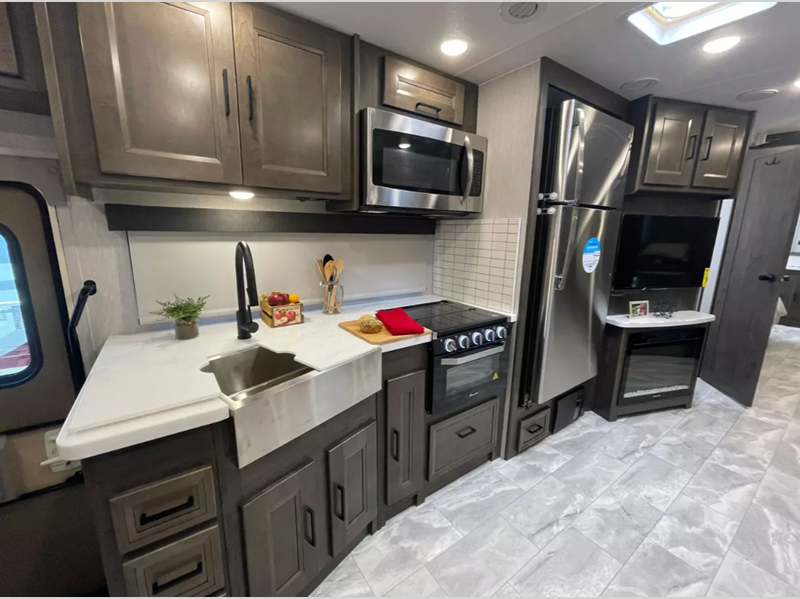

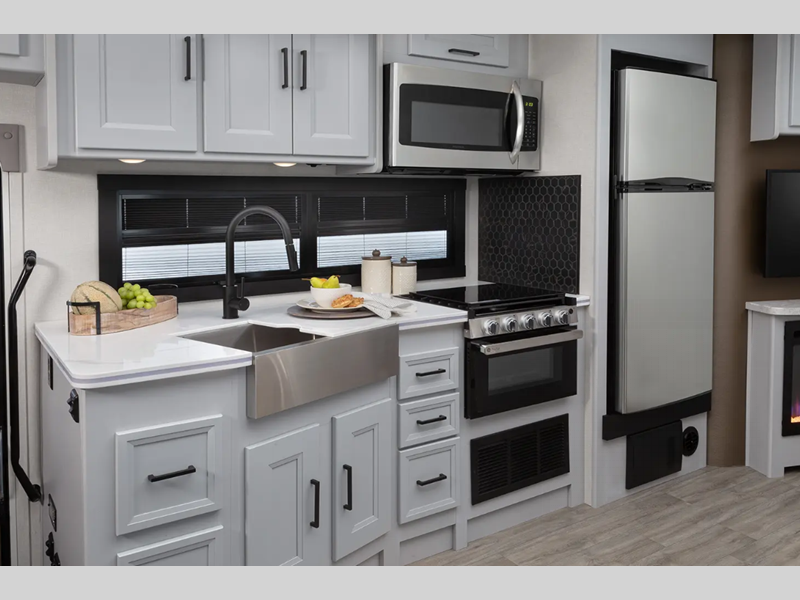

Galley
- 8 Cubic Foot Double Door Refrigerator
- High-Rise Kitchen Faucet
- Stainless Double Bowl Kitchen Sink
- Flush Mounted 3-Burner Range with Oven
- Solid Surface Range and Sink Covers
- 30” OTR Microwave Oven
- Tile Backsplash

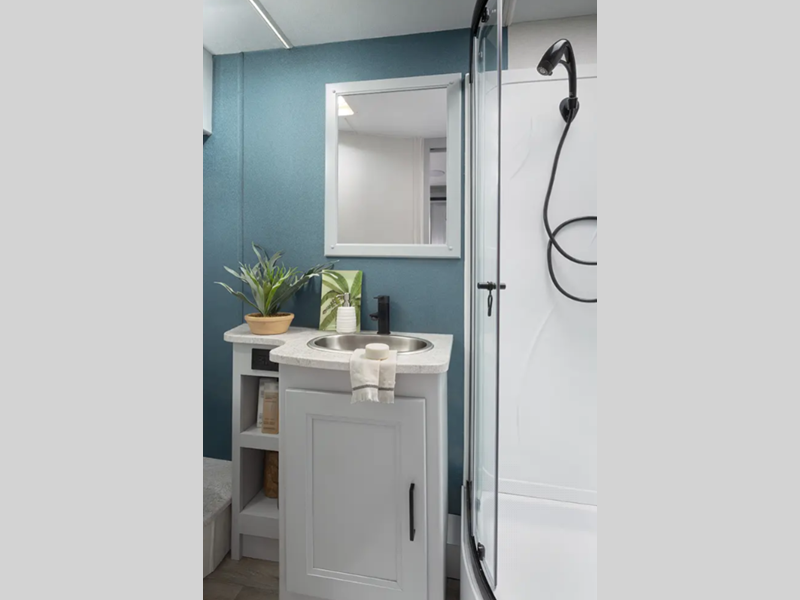

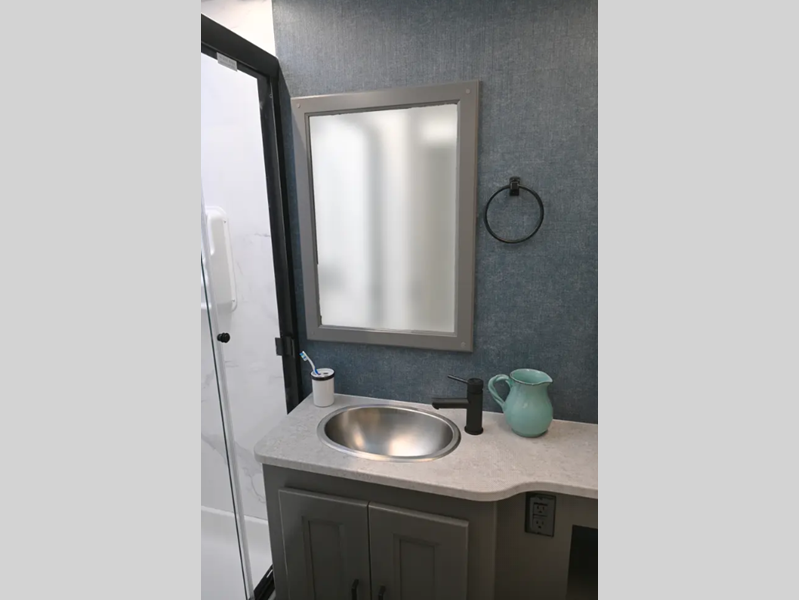

Bath and Water
- Stainless Lavatory Sink

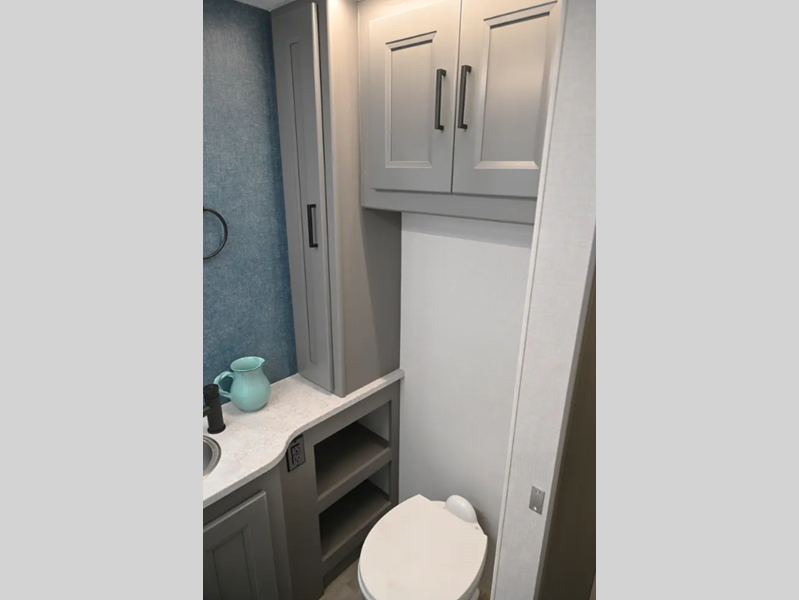

- Porcelain Toilet with Foot Flush
- One Piece ABS Shower Surround
- Glass Shower Door
- Power Bath Vent
- 6-Gallon (Gas/ELEC) D.S.I. Water Heater
- Demand Water Pump
- Skylight Over the Shower
- Stackable Washer/Dryer Prep (35KB Only)
- Whole Coach Water Filter (EXC. CSA)

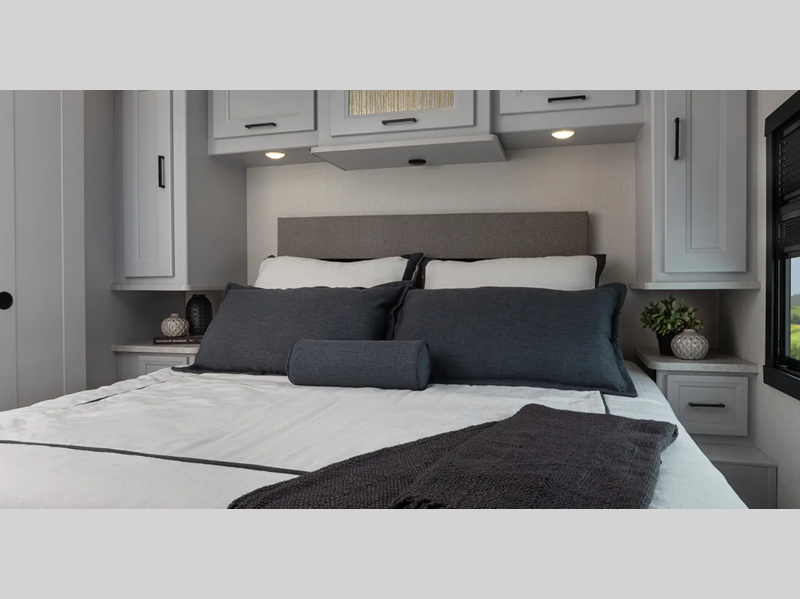

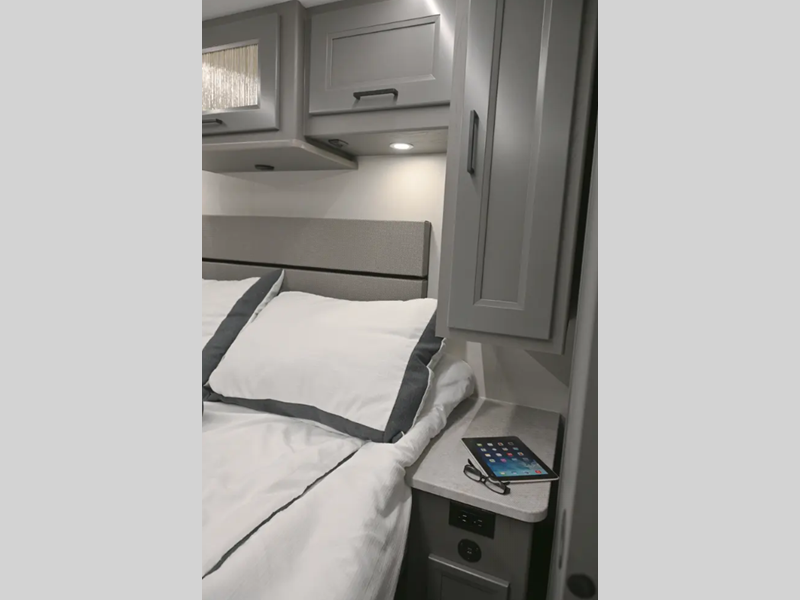

Sleeping
- Queen Bed 60W X 74L (35BH and 35LS)
- King Bed 70W X 74L (29FW, 32SS, and 35KB)
- Bunk Beds Convert to Wardrobe (35BH Only)
- Serta Mattress
- Bedspread and Pillows with Shams
- Designer Headboard (29FW, 32SS, and 35KB)

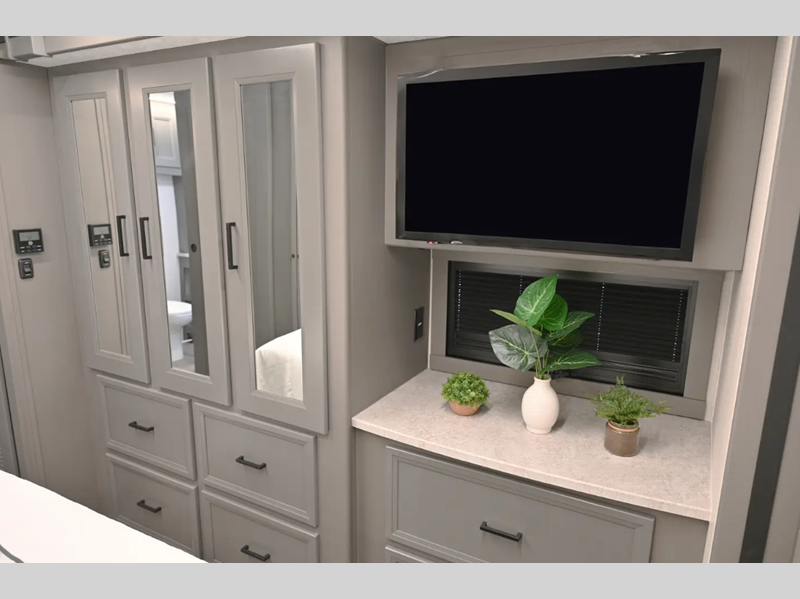

- 32” LCD TV Bedroom
Electrical/Heating/AC
- 30’ 50-Amp Power Cord
- 55-Amp, 110/12-Volt Power Converter
- GFI Circuit
- Outside Receptacle (DS)
- Emergency Start Switch
- Lighted Trunk Boxes
- Exterior LED Strip Light
- 30,000-BTU Electric Ignition Furnace
- 13,500-BTU Roof Air Conditioner-Ducted
- 2nd 13,500-BTU Roof Air Conditioner
- Dual Coach Batteries
- 5.5KW Onan Generator
- Coach Command Center
- Automatic Transfer Switch
Automotive/Exterior
- Auxiliary Dash Fans
- Tilt Steering Wheel
- Cruise Control
- Intermittent Wipers
- Dash Air Conditioning
- 19.5” Radial Tires
- Rear Mud Flaps Only
- Power Entrance Step-Double
- Crowned, Laminated Fiberglass Roof
- Full Basement with Pass-Through Storage
- Radius Trunk Doors with Slam Latch
- High Gloss ‘Champagne’ Sidewalls
- Fiberglass Front Cap and Rear Cap
- Dead Bolt Lock-Entrance Door
- 26” Radius Entry Door
- Power Patio Awning
- 8,000-Pound Towing Hitch with 7-Way Plug
- Backup Monitor with Side Cameras
- Rear-Mounted Roof Ladder
- Power Heated Mirror
- Stainless Steel Wheel Liners
- Automatic Leveling Jacks
- Slide-Out Room Awnings
- 20-Gallon LP Tank
- Valve Stem Extenders
- Round Cockpit Pedestal Table
- Computer Work Station at Passenger Seat
- Noble Select™ Gelcoat High-Gloss Sidewalls with Azdel™ Superlight Composite
Interior Color Selections
- Stone Wash
- Bisque
- Midnight Cream
Interior Wood Color Selections
- Estate Cherry
- Cappuccino Cherry
- Slate Cherry

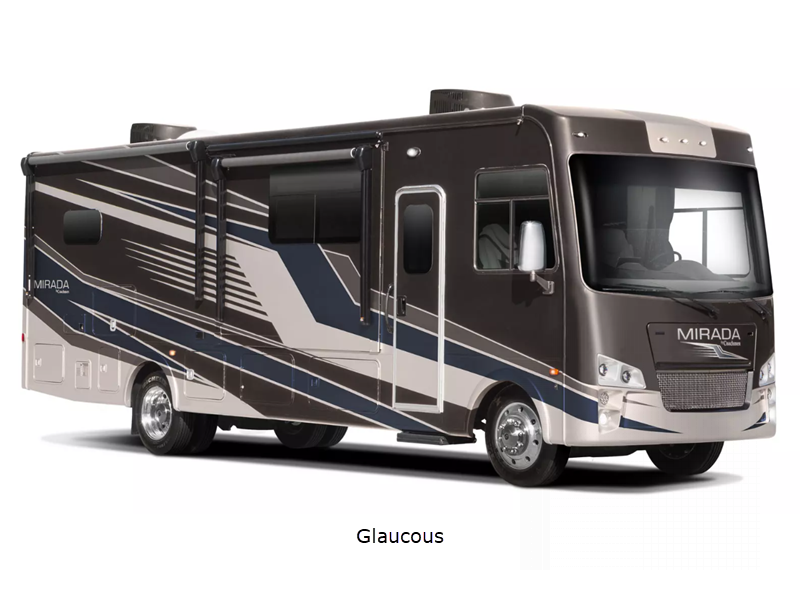

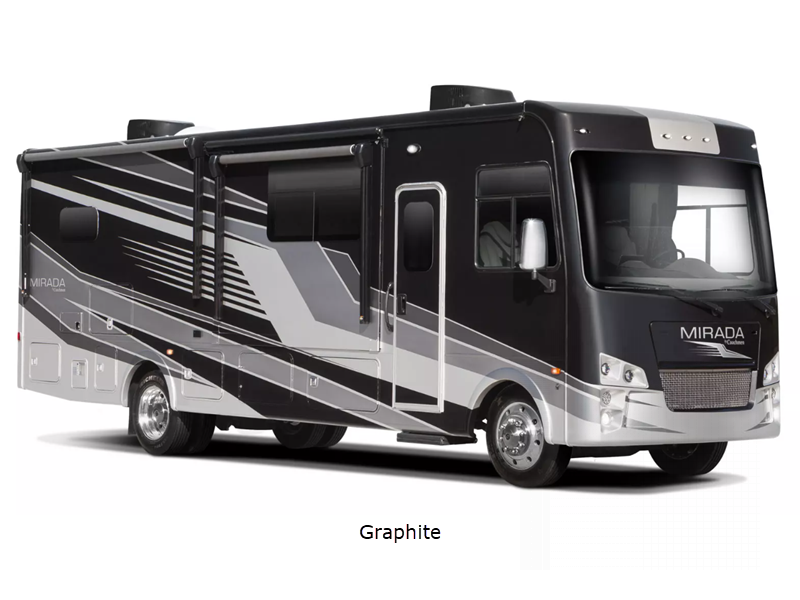

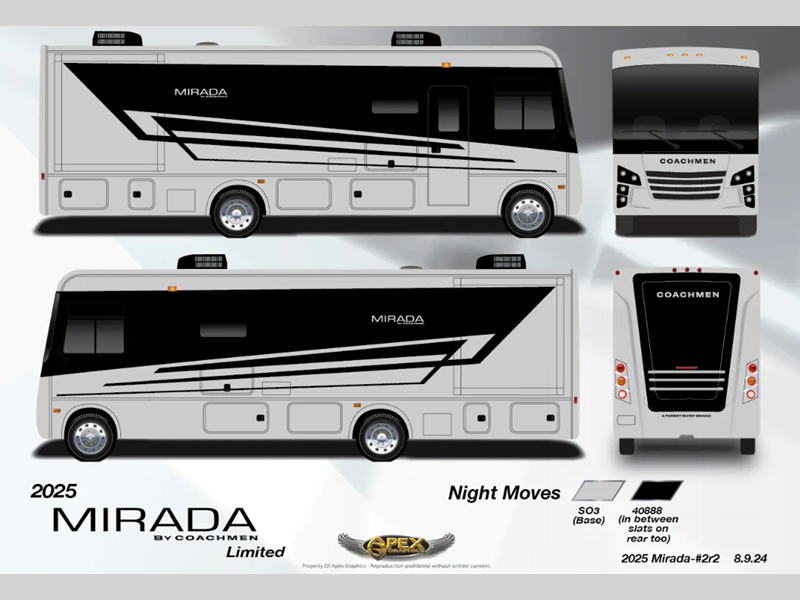

Exterior Color Selections

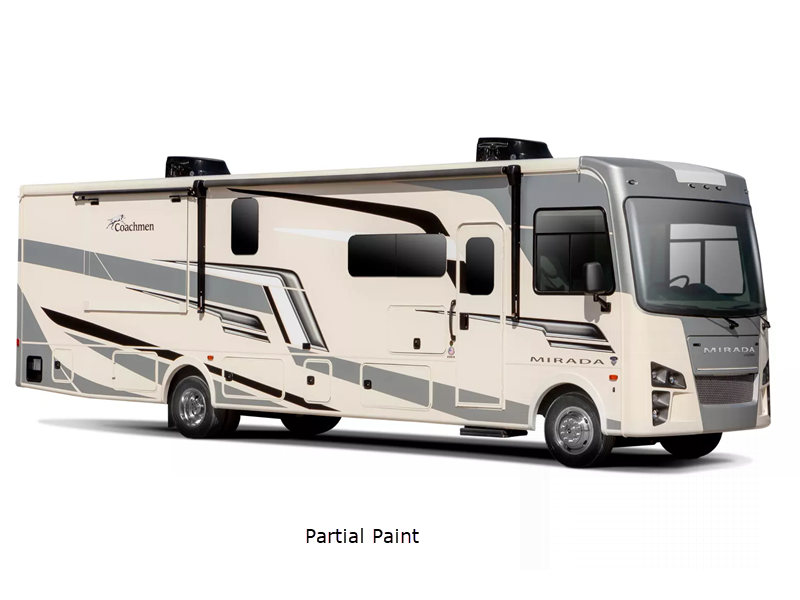

- Champagne Fiberglass with Partial Paint (Standard)
- Electric Blue Full-Body Paint (Optional)
- Black and Tan Full-Body Paint (Optional)
Options

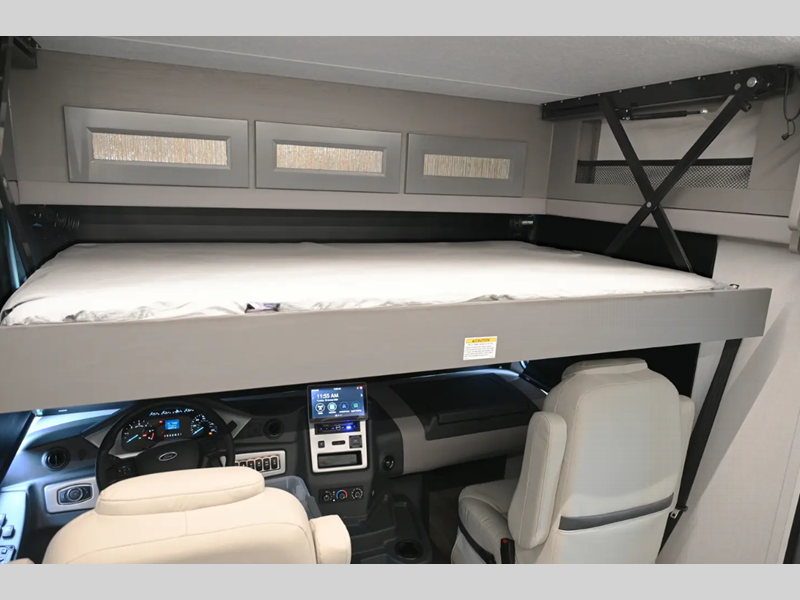

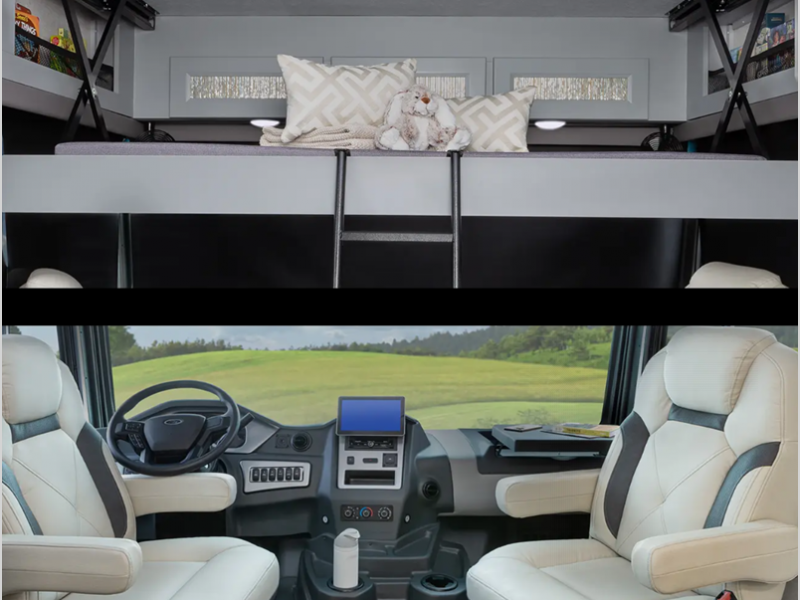

- Power Drop-Down Front Bunk Bed(n/a 35LS)
- Stainless Steel Appliance Package (n/a 29FW) (Residential Refrigerator, OTR Microwave, and Range/Oven, 1000-Watt Inverter with Two 6-Volt Batteries, Auto Generator Start)
- Dual Pane Windows
- 15,000-BTU Air Conditioner with Heat Pump Front
- 15,000-BTU Air Conditioner with Heat Pump Rear
- 32” LCD TV Galley Overhead Cabinet (35BH and 35KB Only)
- Outside Entertainment Center with 32” TV and DVD (n/a 32SS)
- Outside Entertainment Center with 40” TV and DVD (32SS Only)
- Diamond Shield Paint Protection - (Required with Full Paint)
- CSA Upfit
- (1) CD-MVSA (Canadian Motor Vehicle Safety Act) Mandatory For All Canadian Provinces
- Travel Easy Roadside Assistance - provided by Coach-Net
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
